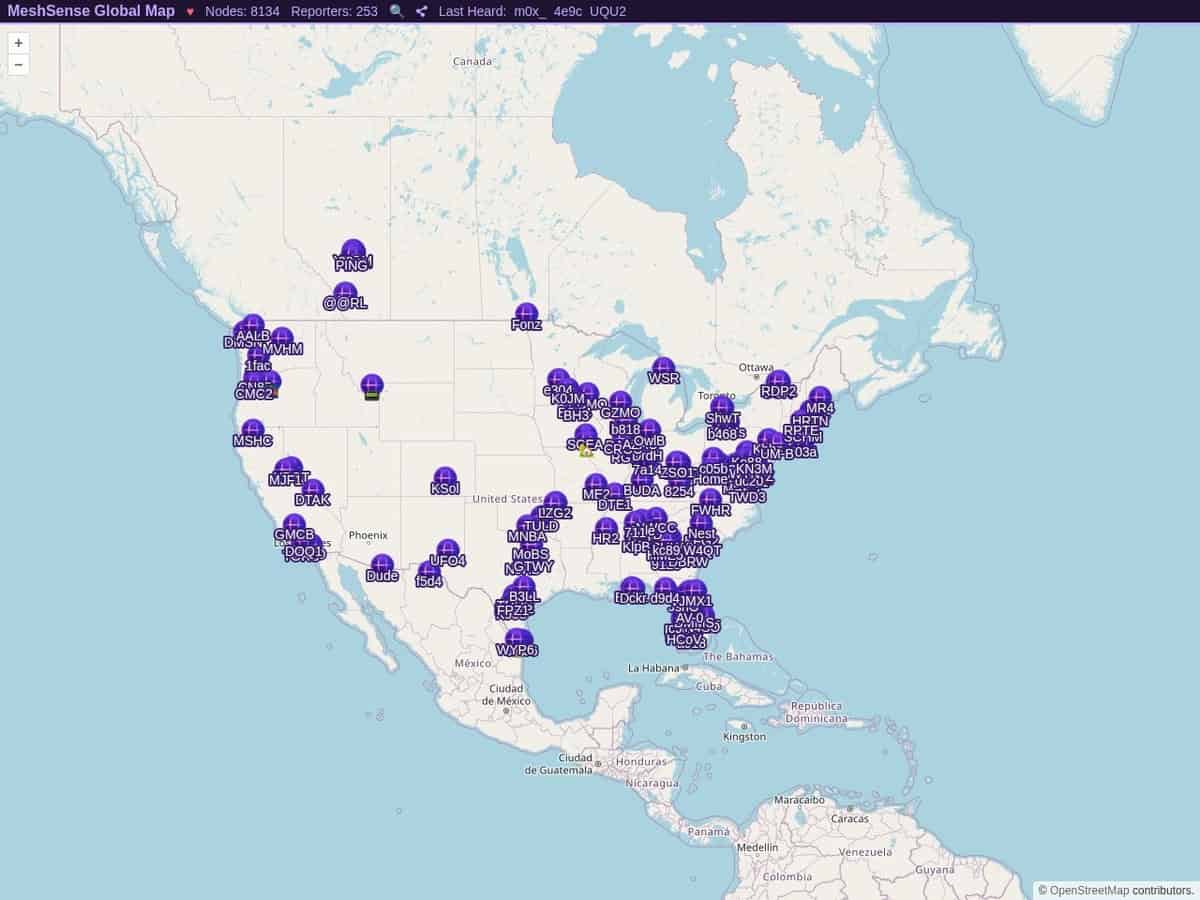

Meshsense Nodes Map for Meshtastic

Communication, Live Monitoring & Tracking

Free
No Download/Install required
No registration

https://meshsense.affirmatech.com/

MeshSense Global Map is the online part (the node map mainly) of Affirmatech’s MeshSeense open source software for Meshtastic mapping and network monitoring. For radio and communication fans.
This tool is a very convenient, quick and easy way to dig into a larger Meshtastic world view.
Their Windows, Linux, Mac versions permit to connect to your own devices, see private networks and have of much more features.

Disciplines: Radio communications, IoT, Emergency management, Amateur radio, Telecommunications.

Free alternative to Meshmap.net, Meshtastic official web client.

Meshsense Nodes Map for Meshtastic compared with Meshmap.net and Meshtastic official web client
Meshsense Nodes Map for Meshtastic	Meshmap.net	Meshtastic official web client
Main purpose: The online node map is the web part of MeshSense, the Affirmatech software for mapping and monitoring Meshtastic networks. It gives a quick world view of the mesh without installing anything.	Main purpose: A nearly live map of Meshtastic nodes seen by the official Meshtastic public MQTT server. It is a viewing tool only, with no way to configure a radio.	Main purpose: A browser client to configure and use your own Meshtastic node. It is a device management tool, not a network-wide map.
Data source: The map is the public side of a tool whose desktop application reads a node you own. The desktop version connects over Bluetooth or WiFi and can also show private networks.	Data source: Data comes from the public MQTT server only. It shows position-reporting nodes that report to MQTT or are heard by a node that does. Self-reported nodes outside MQTT are excluded by design.	Data source: Data comes directly from the connected device. You see your own node and the nodes it hears, not the global network.
Update behaviour and limits: Offers a global overview, while the desktop application adds signal reports and trace routes for the local network.	Update behaviour and limits: Node data is refreshed about every minute. A node is dropped when its position has not updated for 8 hours. Lines drawn to nearby nodes suggest LoRa contact, not a confirmed direct link.	Update behaviour and limits: Limited to what your node reports. Connection by HTTP works only with ESP32 devices and needs HTTPS with a trusted self-signed certificate.
Openness and licence: MeshSense is open source under GPL-3.0 according to its repository. Builds exist for Windows, Linux and macOS, with a headless mode for servers.	Openness and licence: The code is public on GitHub under AGPL-3.0, so you can reuse it to run your own map if you follow the licence terms.	Openness and licence: The source code is published on GitHub and can be self-hosted. The hosted version runs at client.meshtastic.org.
Hardware and setup: No hardware is needed to browse the map. A node is only required if you want the monitoring features of the desktop application.	Hardware and setup: No hardware or account is needed to browse. Search is by node name or ID.	Hardware and setup: A node is required. Connection uses Web Bluetooth, Web Serial (USB) or HTTP, so a Chromium-based browser is recommended.

Topics covered: MeshSense, Meshtastic, open source, mapping, network monitoring, radio communication, Windows, Linux, Mac, private networks, software, user interface, connectivity, visualization, data analysis, device management, real-time monitoring, and interoperability..
