» ポリメラーゼ連鎖反応(PCR)

ポリメラーゼ連鎖反応(PCR)

1983
  • Kary Mullis

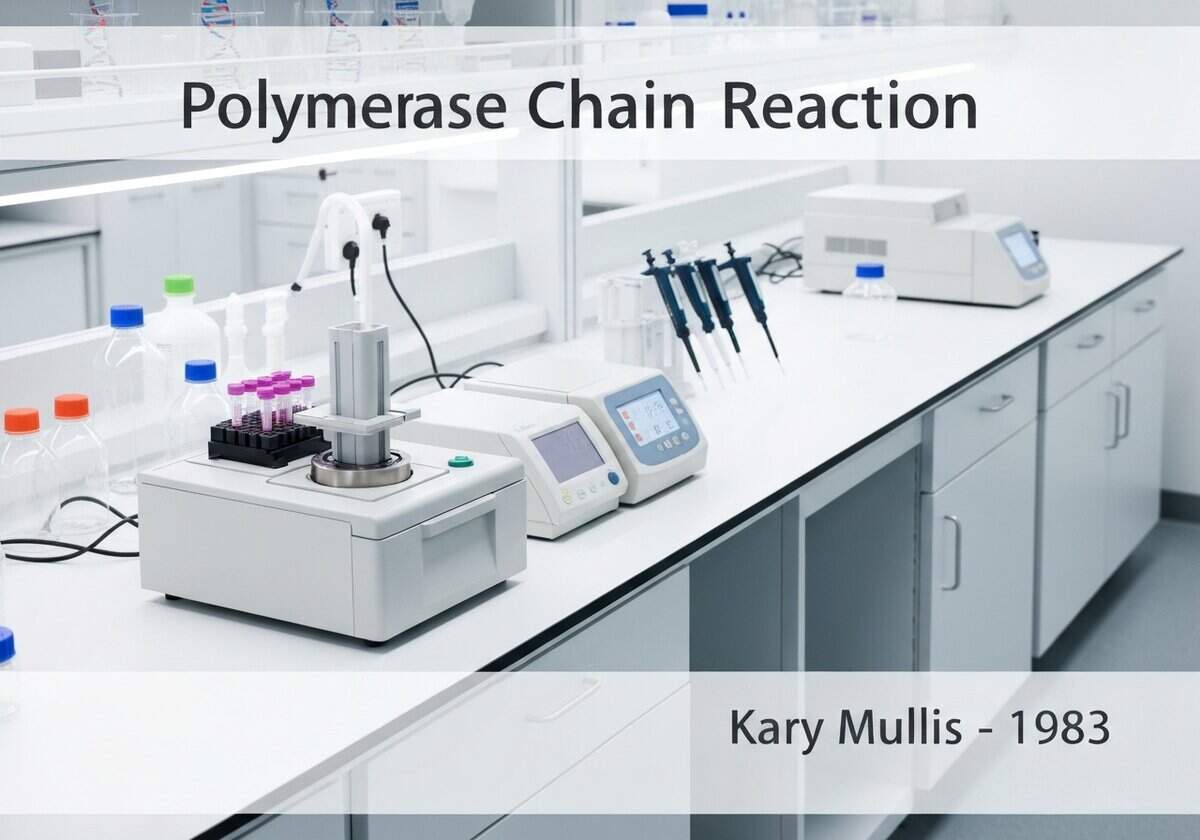

分子生物学実験室でDNAを増幅するサーマルサイクラー。.

(画像はイメージです)

The Polymerase Chain Reaction (PCR) is a laboratory technique used to amplify a specific segment of DNA, generating millions to billions of copies from a small initial sample. The 方法 relies on thermal cycling, consisting of repeated cycles of heating and cooling for DNA melting, primer annealing, and enzymatic replication of the DNA using a thermostable DNA polymerase, resulting in exponential amplification.

The Polymerase Chain Reaction (PCR) is a revolutionary in vitro method for exponentially amplifying a specific target DNA sequence. Its power lies in its ability to generate billions of copies from a minute starting quantity of DNA, making it possible to analyze DNA from samples as small as a single cell. The process is driven by a series of temperature changes, or thermal cycles, managed by a machine called a thermal cycler. Each cycle consists of three core steps. First, Denaturation: the reaction mixture is heated to 94–98 °C for a short period, causing the double-stranded DNA template to separate into single strands. Second, Annealing: the temperature is lowered to 50–65 °C, allowing short, single-stranded DNA primers to bind (anneal) to their complementary sequences on the now single-stranded template DNA. These primers flank the target region to be amplified. Third, Extension: the temperature is raised to 72 °C, the optimal temperature for the key enzyme, a thermostable DNA polymerase, to work. The most commonly used is Taq polymerase, isolated from the thermophilic bacterium *Thermus aquaticus*. The polymerase binds to the primer-template complex and begins synthesizing a new complementary DNA strand, extending from the primer. This three-step cycle is repeated 20-40 times. With each cycle, the number of copies of the target DNA sequence doubles, leading to an exponential amplification, mathematically described as [latex]2^n[/latex], where n is the number of cycles. The result is a solution containing a vast quantity of the specific DNA fragment, which can then be easily visualized by gel electrophoresis or used in subsequent molecular biology applications like sequencing or cloning.

UNESCO Nomenclature: 2406
分子生物学

タイプ

化学プロセス

混乱

革命的

使用法

広く普及している

前駆物質

  • discovery of DNA structure
  • understanding of DNA replication principles
  • isolation of DNA polymerase enzymes
  • discovery of thermostable organisms and their enzymes (e.g., Taq polymerase)
  • development of oligonucleotide synthesis for primers

アプリケーション

  • DNA fingerprinting for forensics
  • medical diagnostics for infectious diseases (e.g., COVID-19)
  • genetic testing for hereditary diseases
  • cloning genes
  • sequencing genomes
  • phylogenetic analysis

特許:

  • US4683195
  • US4683202
  • US4965188

潜在的なイノベーションのアイデア

ボットによるトラフィック(現在1日あたり4万件以上)を排除するため、このコンテンツはコミュニティメンバー限定となっています。
> ログイン < または > 登録 < (100%無料)でこれにアクセスできます。他のすべての制限付きコンテンツとツールも同様です。

Related to: PCR, polymerase chain reaction, DNA amplification, kary mullis, taq polymerase, thermal cycling, forensics, diagnostics, molecular cloning, genetic testing.

歴史的背景

ポリメラーゼ連鎖反応(PCR)

1973
1975
1979
1983
1988
1990
1990
1970
1975
1977
1983
1987
1990
1990
1990

(日付が不明または関連性がない場合、例えば「流体力学」などでは、その注目すべき出現時期の概算値が提示されます。)

関連する発明、革新、および技術原理

フルサイズの画像とダウンロードは、登録会員のみが100%無料で利用できます。
